- Size: 0.01
- Place of Origin: China
- Brand Name: FULLWORLD
- Model Number: 814120
- Weight: 1.500 kg

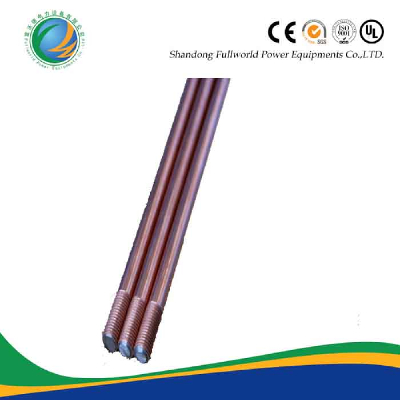

Length 1.2m copper bonded ground rod
Copper bonded ground rod are used for underground .Good in anti-corrosion for copper bonded ground rod ,because of copper has excellent corrosion resistant .First ,put a layer nickel on the steel core , after put copper thickness on it .By electrolysis principle , high quality copper electrolytic attached to the nickel with steel core .

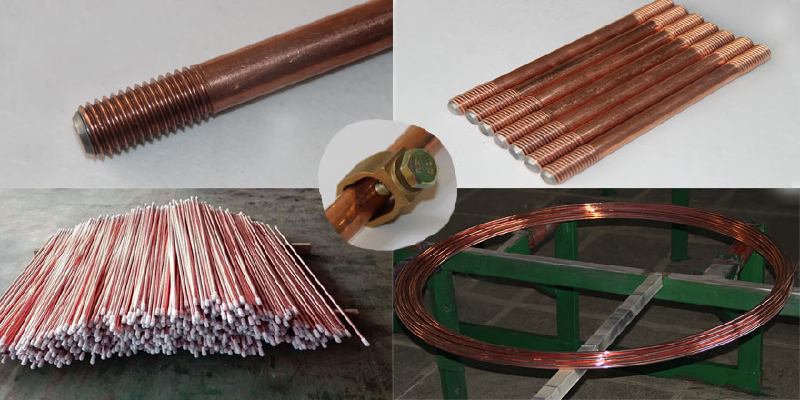

Of course , we have our own factory .Our copper bonded ground rod can divide three type :Pointed copper bonded ground rod ,threaded gcopper bonded round rod ,unthreaded copper bonded ground rod .We can design copper bonded ground rod according to your requirement .
Product Technical Specification
1:Thickness of the copper layer is more than 0.254mm(all can be done to your demand)
2:The core steel rod shall have a tensile strength of not less than 580Nm/mm2.
3:The steel core is low carbon steel, and the carbon content is about 0.15%.
4:The purity of the copper using as cladding shall be 99.9% pure copper.
5:The Ground Rod will be capable of being through 90 at a maximum radius if 100mm with no copper fracture and with no ill effect on the bond between the steel and the copper cladding.
6:Good in anti-corrosion that usage-life is more than 50 years or more, constant low resistance and good plasticity which had the characteristics of copper as well as steel.
Company Information
Established in 2005 with 10,000,000 RMB registered capital .We already have more than ten tears experience .
We could provide you the Copper bonded Steel Earth Rod ,Copper Bonded Steel Tape ,chemical ground electrode ,exothermic welding material ,and other earthing accessories and material .With our own factory and professional team , we could provide you the best products and service .
Why choose us ?
1:10 years of R&D
2:Experience engineers and project teams .
3:Quality Approvals
4:Reasonable Price
5:Fast Delivery
6:Perfect after-sales Service
7:Small Orders Accepted
If you are interested in our products,please feel free to contact.
- Size: 0.01
- Place of Origin: China
- Brand Name: FULLWORLD
- Model Number: 814120
- Weight: 1.500 kg
Copper bonded groud rod specifications
Copper bonded ground rod | Copper thickness | Length | Diameter |
814120 | 0.254mm | 1.2m | 14.2mm |
816120 | 0.254mm | 1.2m | 16.0mm |
817120 | 0.254mm | 1.2m | 17.2mm |
818120 | 0.254mm | 1.2m | 18.0mm |
820120 | 0.254mm | 1.2m | 20.0mm |
