Copper gorund rod
Product Information about copper ground rod

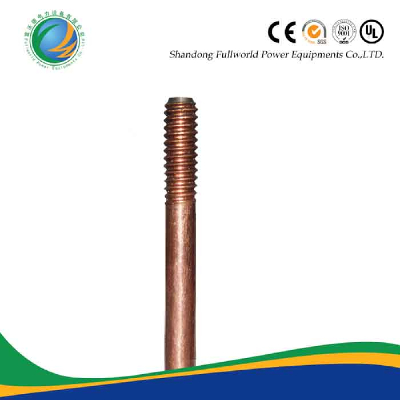

Copper ground rod
Copper ground rod are used for underground .Good in anti-corrosion for copper ground rod ,because of copper has excellent corrosion resistant .First ,put a layer nickel on the steel core , after put copper thickness on it .By electrolysis principle , high quality copper electrolytic attached to the nickel with steel core .

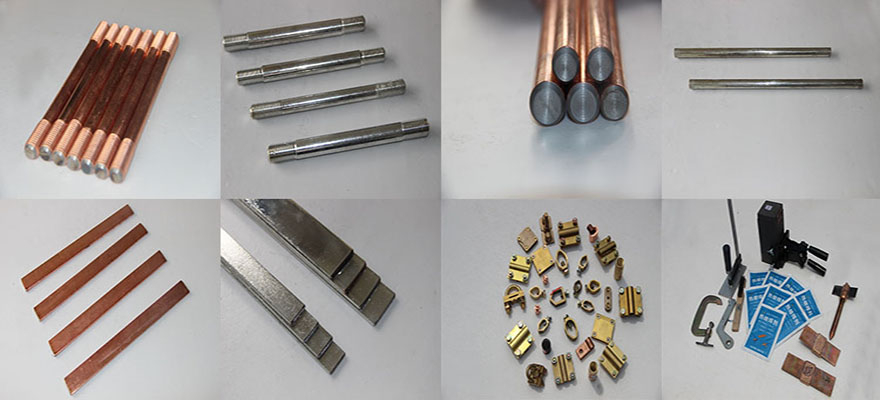

Of course , we have our own factory .Our copper ground rod can divide three type :Pointed copper ground rod,,threaded copper ground rod ,unthreaded copper ground rod .We can design ground rod according to your requirement .
Copper ground rod No | Length (mm) | Diameter (mm) | Copper thickness (mm) |
814120 | 1200mm | 14.2mm | 0.254mm |
814250 | 2500mm | 14.2mm | 0.254mm |
814300 | 3000mm | 14.2mm | 0.254mm |
816120 | 1200mm | 16.0mm | 0.254mm |
816250 | 2500mm | 16.0mm | 0.254mm |
816300 | 3000mm | 16.0mm | 0.254mm |
817120 | 1200mm | 17.2mm | 0.254mm |
817250 | 2500mm | 17.2mm | 0.254mm |
817300 | 3000mm | 17.2mm | 0.254mm |
818120 | 1200mm | 18.0mm | 0.254mm |
818250 | 2500mm | 18.0mm | 0.254mm |
818300 | 3000mm | 18.0mm | 0.254mm |
820120 | 1200mm | 20.0mm | 0.254mm |
820250 | 2500mm | 20.0mm | 0.254mm |
820300 | 3000mm | 20.0mm | 0.254mm |
Product Technical Specification
1:Thickness of the copper layer is more than 0.254mm(all can be done to your demand)
2:The core steel rod shall have a tensile strength of not less than 580Nm/mm2.
3:The steel core is low carbon steel, and the carbon content is about 0.15%.
4:The purity of the copper using as cladding shall be 99.9% pure copper.
5:The Ground Rod will be capable of being through 90 at a maximum radius if 100mm with no copper fracture and with no ill effect on the bond between the steel and the copper cladding.
6:Good in anti-corrosion that usage-life is more than 50 years or more, constant low resistance and good plasticity which had the characteristics of copper as well as steel.
The reason why you choose us
1:Company status:our company specialize in this field for many years, we have best products .
2;High quality. We guarantee our products have high quality ,you can choose products safely and these products can meet your needs .
4:Samples for free.We can send you samples for free, of course send you small size products and you should pay for the shipping cost .
5:Long use life.We only provide best quality products , so that they can use long life.
6:Fast delivery time. We have large quantity products in stock , can be send out soon.
7;OEM service ;we have our own professional designers ,so that we can design products to meet your requirement .
RFQ
1:Are you a trading company manufacturer ?
A:We are manufacturer with our own factory .
2.Is customized Material available ?
A:Yes,please offer your required specs or samples .
3.What’s your Delivery Time ?
A:Usually 10-25 days .
4.What’s the payment terms ?
A:Usually ,T/T 30% in advance as deposit ,T/T and 70% against the B/L.
5.How you pack products ?
A:Normally ,in steel pallet .We’ll do according to customers’ requirement .
6.What’s your available port of Shipment ?
A:Normally ,Qingdao Port
If you have any questions,please feel free to contact.
